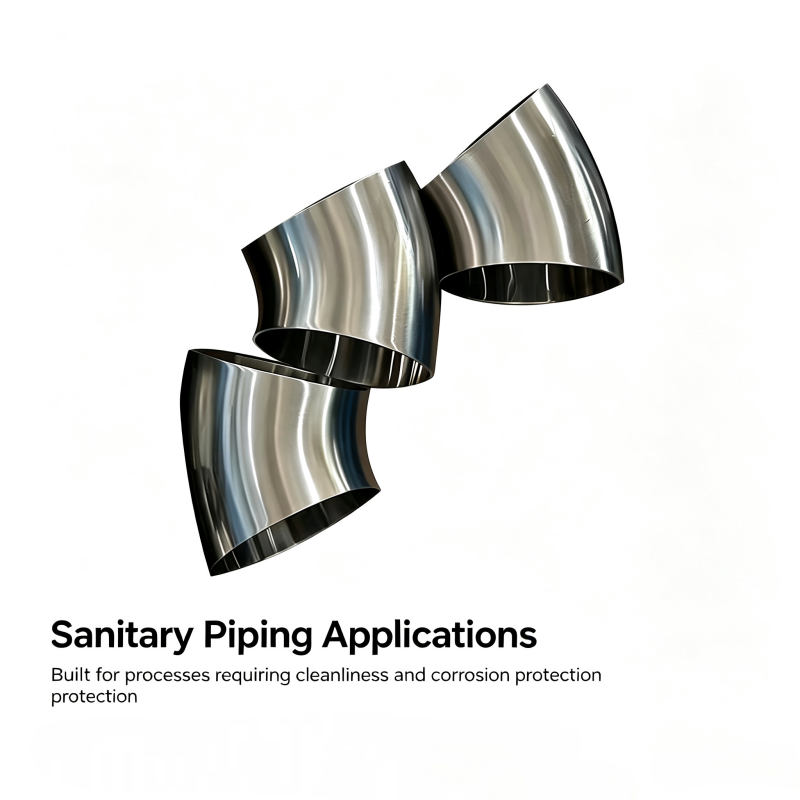

ASME BPE Titanium Sanitary 45 Elbow Dead Zone Free

Our titanium 45° elbows are manufactured from Gr1, Gr2, Gr7, Gr12 and TC4 titanium alloy, complying with ASTM B363, ASME B16.9 and ASME BPE standards. Available in seamless and welded types, long radius (1.5D) / short radius (1D).
Sanitary versions adopt mirror polishing, passivation treatment, smooth inner wall without dead corners, supporting CIP/SIP cleaning, widely used in pharmaceutical, biotech, food and high-purity water systems.
Industrial titanium 45 bends feature outstanding corrosion resistance against chloride, acid and seawater, ideal for chemical, offshore, marine, power and aerospace piping. We support custom sizes, wall thickness, tri-clamp / buttweld ends, pickling, polishing and anodizing.

​

Standard	GB/T17684-2011,ASME B 16.9
Material	TA1,TA2, Gr.1 BT1-00, Gr.1ELI, BT1-00CB,Gr.2 BT1-0 etc
Size	DN15-DN 650(NPS1/2-NPS 26)
OEM/ODM	Available
Titanium Surface Finish	Inner and Outer Surface Polishing
Technics	Welding
Type	Titanium 45° sanitary elbow
Packaging	Export standard wooden case, or can be customized
Application	Pharmaceutical Industry Biotechnology & Biopharm Food & Beverage Industry Cosmetics Industry Semiconductor & Electronics Industry Chemical & Speciality Chemicals Vehicle Exhaust System

​

​

(mm)

Nominal size		OD at Bevel	Center to End			Center to Center		Back to Face
			90°Ebows		45°Ebows	180°return
DN	NPS	D	LR	SR	LR	LR	SR	LR	SR
15	1/2	21.3	38	-	16	76	-	48	-
20	3/4	26.7	38	-	19	76	-	51	-
25	1	33.4	38	25	22	75	51	56	41
32	1 1/4	42.2	48	32	25	95	64	70	52
40	1 1/2	48.3	57	38	29	114	76	83	62
50	2	60.3	76	51	35	152	102	106	81
65	2 1/2	73.0	95	64	44	191	127	132	100
80	3	88.9	114	76	51	229	152	159	121
90	3 1/2	101.6	133	89	57	267	178	184	140
100	4	114.3	152	102	64	305	203	210	159
125	5	141.3	190	127	79	381	254	262	197
150	6	168.3	229	152	95	457	305	313	237
200	8	219.1	305	203	127	610	406	414	313
250	10	273	381	254	159	762	508	518	391
300	12	323.8	457	305	190	914	609	619	467
350	14	355.6	533	356	222	1067	711	711	533
400	16	406.4	610	406	254	1219	813	813	610
450	18	457.0	686	457	286	1372	914	914	686
500	20	508.0	762	508	318	1524	1016	1016	762
550	22	559.0	838	559	343	1676	1118	1118	838
600	24	610.0	914	610	381	1829	1219	1219	914
650	26	660.0	991	660	406	-	1320	-

​

Titanium pipe fittings are tubular connecting parts mainly made of titanium and titanium alloys. Titanium metal

itself has the characteristics of low density, high specific strength, strong corrosion resistance and excellent

biocompatibility, which enables titanium pipe fittings to maintain stable performance even in extreme

environments. Titanium pipe fittings can demonstrate extraordinary reliability in fields such as the chemical industry,

Marine engineering, the petroleum industry, and the automotive industry.
