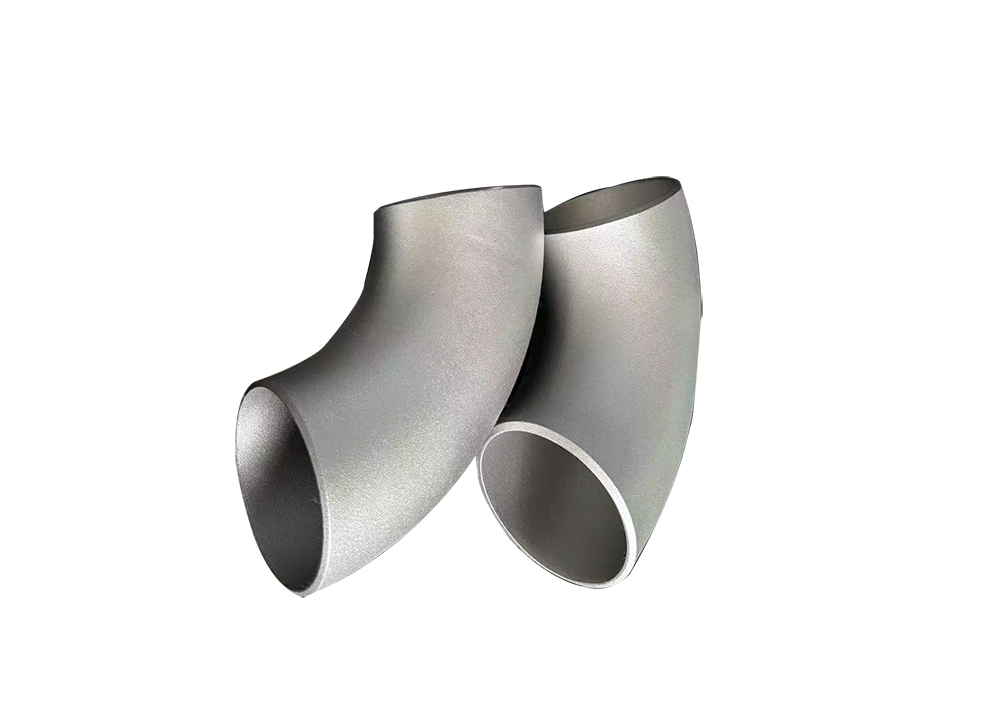

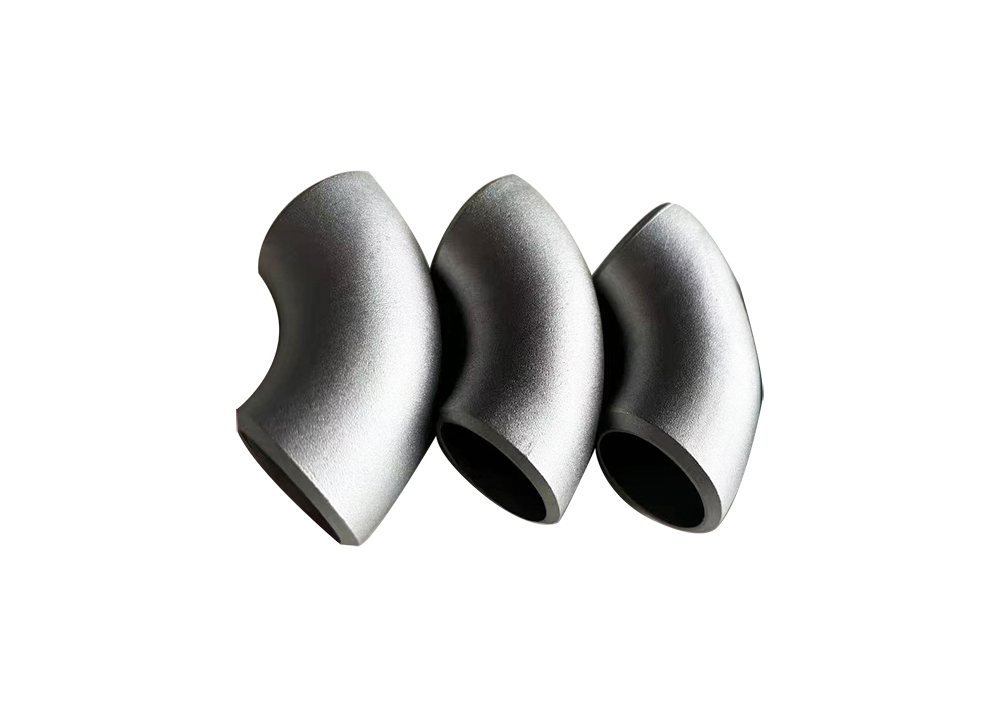

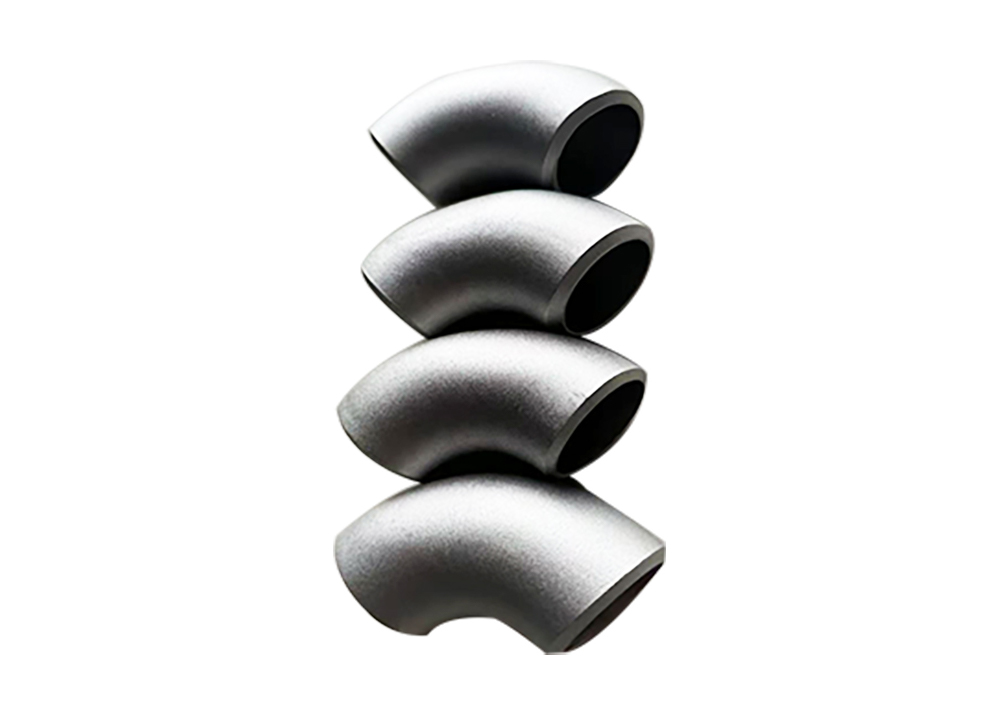

Titanium 90 degree elbow has excellent corrosion resistance in various media, and they are characterized
by low density, high strength, smooth surface and no dirt. Therefore, they are widely used in various industrial
fields.
Titanium 90 degree elbow selection and usage must be determined by specific application scenarios and
requirements; pipe diameter, working pressure, and medium characteristics must be considered.
Titanium 90 ° elbow pipe fittings specifications cover all size, and also support non-standard customization
accordingly to customer’s requirements or drawings. Our titanium reducing tee are manufactured critically
to the exact standard, including ASME ，GB/T international standards to meet different requirements from
the customers worldwide.
|
Standard |
ANSI,ASME,DIN,JIS,GB/T |
|
Material Designation |
TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
|
Size |
DN15-DN1200 |
|
OEM/ODM |
Available |
|
Titanium Surface Finish |
Shot blasting, Sand blasting |
|
Technics |
Welding, Seamless |
|
Type |
Titanium 90 Degree Elbow |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for offshore oil drilling, etc |
（mm）
|
Nominal size |
Outside diameter at bevel |
Center to end |
|||
|
45° elbow |
90° elbow |
||||
|
I Series |
II Series |
Major radius |
Major radius |
Short radius |
|
|
15 |
21.3 |
18 |
16 |
38 |
——— |
|
20 |
26.7 |
25 |
19 |
38 |
——— |
|
25 |
33.4 |
32 |
22 |
38 |
25 |
|
32 |
42.2 |
38 |
25 |
48 |
32 |
|
40 |
48.3 |
45 |
29 |
57 |
38 |
|
50 |
60.3 |
57 |
35 |
76 |
51 |
|
65 |
73.0 |
76 |
44 |
95 |
64 |
|
80 |
88.9 |
89 |
51 |
114 |
76 |
|
90 |
101.6 |
57 |
133 |
89 |
|
|
100 |
114.3 |
108 |
64 |
152 |
102 |
|
125 |
141.3 |
133 |
79 |
190 |
127 |
|
150 |
168.3 |
159 |
95 |
229 |
152 |
|
200 |
219.1 |
219 |
127 |
305 |
203 |
|
250 |
273.0 |
273 |
159 |
381 |
254 |
|
300 |
323.8 |
325 |
190 |
457 |
305 |
|
350 |
355.6 |
377 |
222 |
533 |
356 |
|
400 |
406.4 |
426 |
254 |
610 |
406 |
|
450 |
457 |
480 |
286 |
686 |
457 |
|
500 |
508 |
530 |
318 |
762 |
508 |
|
550 |
559 |
——— |
343 |
838 |
559 |
|
600 |
610 |
630 |
381 |
914 |
610 |
|
650 |
660 |
——— |
406 |
991 |
——— |
|
700 |
711 |
720 |
438 |
1 067 |
——— |
|
750 |
762 |
——— |
470 |
1 143 |
——— |
|
800 |
813 |
820 |
502 |
1 219 |
——— |
|
850 |
864 |
——— |
533 |
1 295 |
——— |
|
900 |
914 |
920 |
565 |
1 372 |
——— |
|
950 |
965 |
——— |
600 |
1 448 |
——— |
|
1 000 |
1 016 |
1 020 |
632 |
1 524 |
——— |
|
1 050 |
1 067 |
——— |
660 |
1 600 |
——— |
|
1 100 |
1 118 |
1 120 |
695 |
1 676 |
——— |
|
1 150 |
1 168 |
——— |
727 |
1 753 |
——— |
|
1 200 |
1 219 |
1 220 |
759 |
1 829 |
——— |
Titanium pipe fittings are tubular connecting parts mainly made of titanium and titanium alloys. Titanium metal
itself has the characteristics of low density, high specific strength, strong corrosion resistance and excellent
biocompatibility, which enables titanium pipe fittings to maintain stable performance even in extreme
environments. Titanium pipe fittings can demonstrate extraordinary reliability in fields such as the chemical industry,
Marine engineering, the petroleum industry, and the automotive industry.
