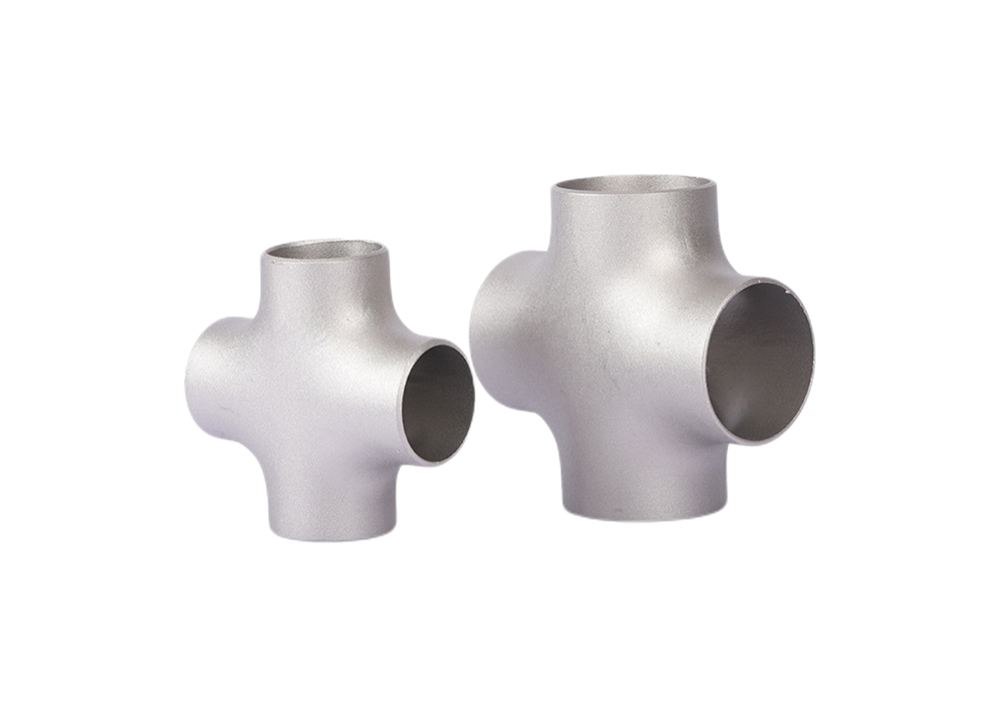

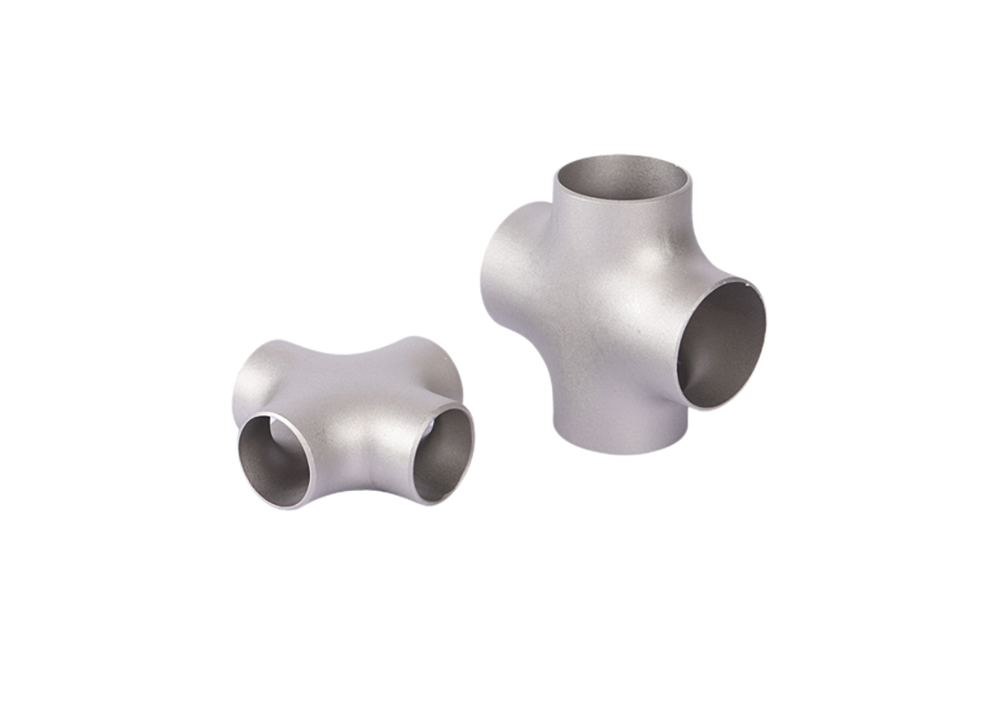

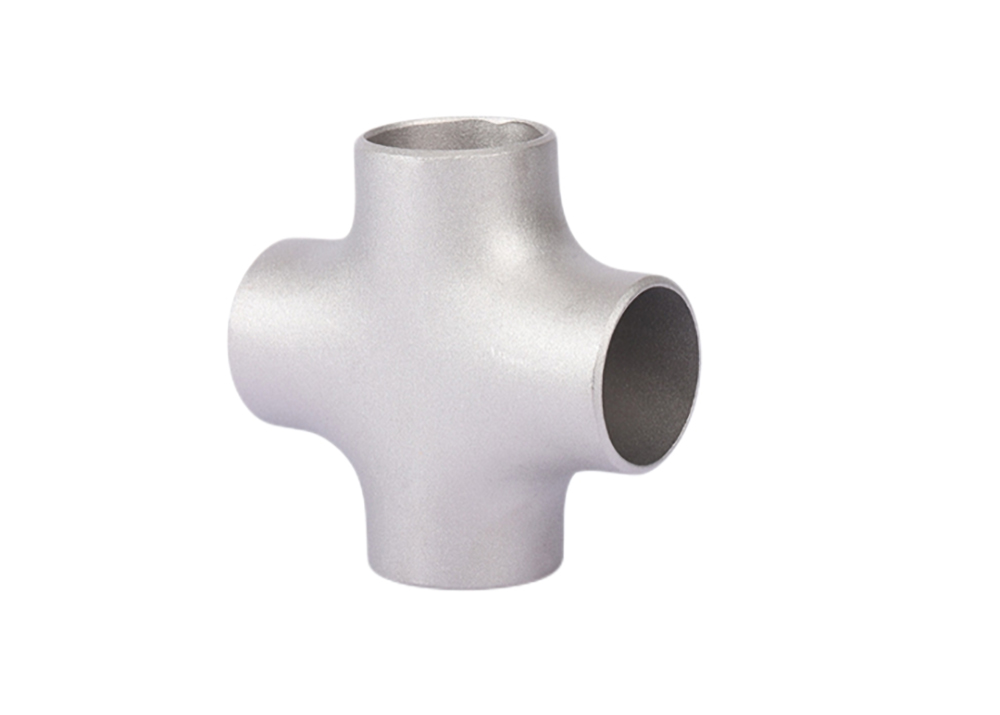

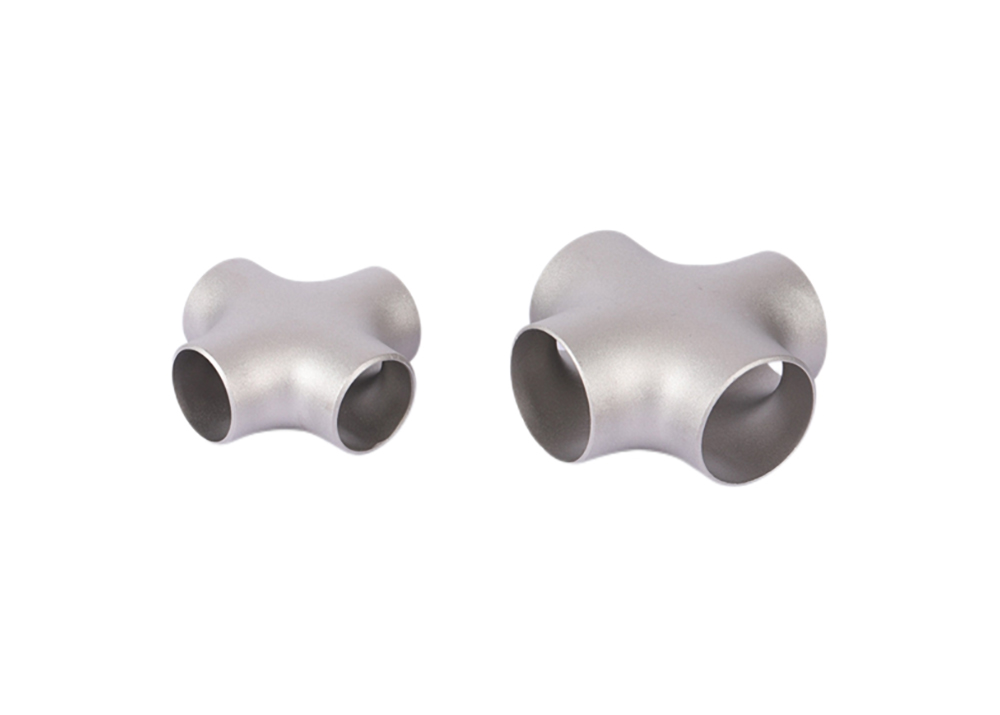

Titanium elbow equal cross is key connecting components for fluid diversion in pipeline systems. They are designed with equal or unequal diameters to meet the requirements of different pipe diameters. Titanium equal cross are widely used in petrochemical, precision instrument and other fields.
Titanium pipe cross features with strong corrosion resistance, resistance to acids and alkalis, high strength, light weight reducing structural weight, high temperature resistance, stable performance, and extended service life. These characteristics ensure the long-term reliable operation of the system.
Titanium equal cross pipe fittings specifications cover DN15-DN1200, and also support non-standard customization accordingly to customer’s requirements or drawings. Our titanium equal cross pipe fittings are manufactured critically to the exact standard, including ASME B16.9，GB/T27684-2011 international standards to meet different requirements from the customers worldwide.
|
Standard |
ASME B16.9，GB/T27684-2011 |
|
Material Designation |
TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
|
Size |
DN15-DN1200（1/2”-48”） |
|
OEM & ODM |
Available |
|
Titanium Surface Finish |
Shot blasting, Sand blasting |
|
Technics |
Welding, Seamless |
|
Type |
Titanium Equal Cross |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for offshore oil drilling, etc. |

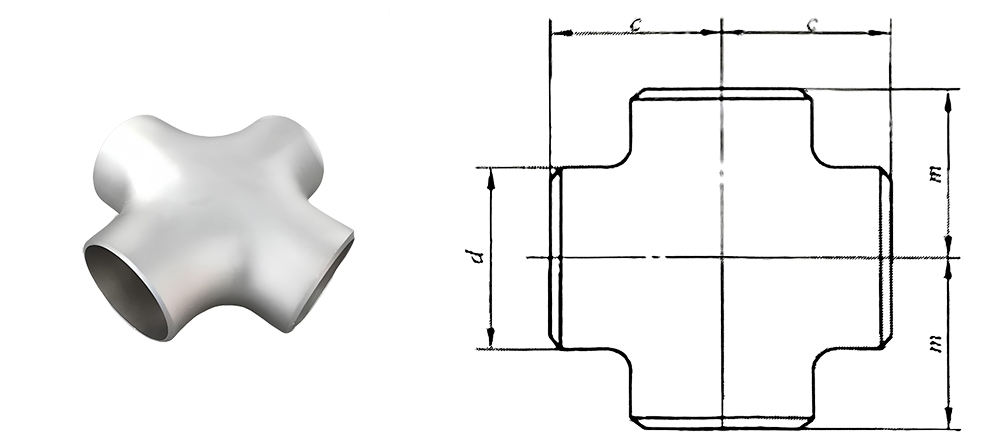

(mm)
|
Nominal Diameter |
Outside diameter at bevel |
Center to end |
||
|
ⅠSeries |
ⅡSeries |
Tube pass C |
Exit M |
|
|
15 |
21.3 |
18 |
25 |
25 |
|
20 |
26.7 |
25 |
29 |
29 |
|
25 |
33.4 |
32 |
38 |
38 |
|
32 |
42.2 |
38 |
48 |
48 |
|
40 |
48.3 |
45 |
57 |
57 |
|
50 |
60.3 |
57 |
64 |
64 |
|
65 |
73.0 |
76 |
76 |
76 |
|
80 |
88.9 |
89 |
86 |
86 |
|
90 |
101.6 |
——— |
95 |
95 |
|
100 |
114.3 |
108 |
105 |
105 |
|
125 |
141.3 |
133 |
124 |
124 |
|
150 |
168.3 |
159 |
143 |
143 |
|
200 |
219.1 |
219 |
178 |
178 |
|
250 |
273.0 |
273 |
216 |
216 |
|
300 |
323.8 |
325 |
254 |
254 |
|
350 |
355.6 |
377 |
279 |
279 |
|
400 |
406. 4 |
426 |
305 |
305 |
|
450 |
457 |
480 |
343 |
343 |
|
500 |
508 |
530 |
381 |
381 |
|
550 |
559 |
——— |
419 |
419 |
|
600 |
610 |
630 |
432 |
432 |
|
650 |
660 |
——— |
495 |
495 |
|
700 |
711 |
720 |
521 |
521 |
|
750 |
762 |
——— |
559 |
559 |
|
800 |
813 |
820 |
597 |
597 |
|
850 |
864 |
——— |
635 |
635 |
|
900 |
914 |
920 |
673 |
673 |
|
950 |
965 |
——— |
711 |
711 |
|
1 000 |
1 016 |
1 020 |
749 |
749 |
|
1 050 |
1 067 |
——— |
762 |
711 |
|
1 100 |
1 118 |
1 120 |
813 |
762 |
|
1 150 |
1 168 |
——— |
851 |
800 |
|
1 200 |
1 219 |
1 220 |
889 |
838 |
|
Suitable for the cross below DN600. Tees and cross above DN650, recommend exit size. |
||||
