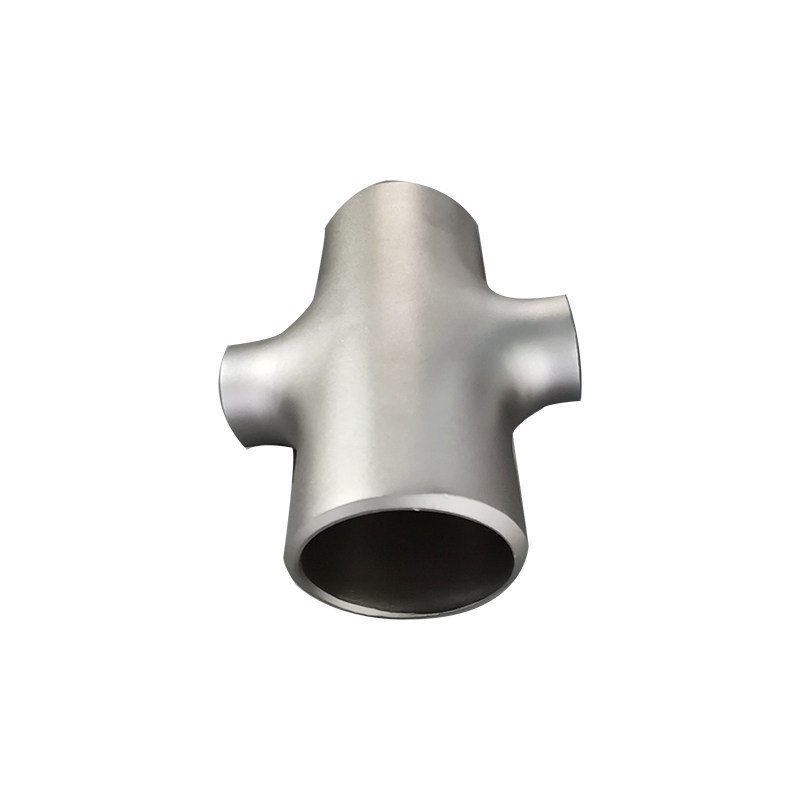

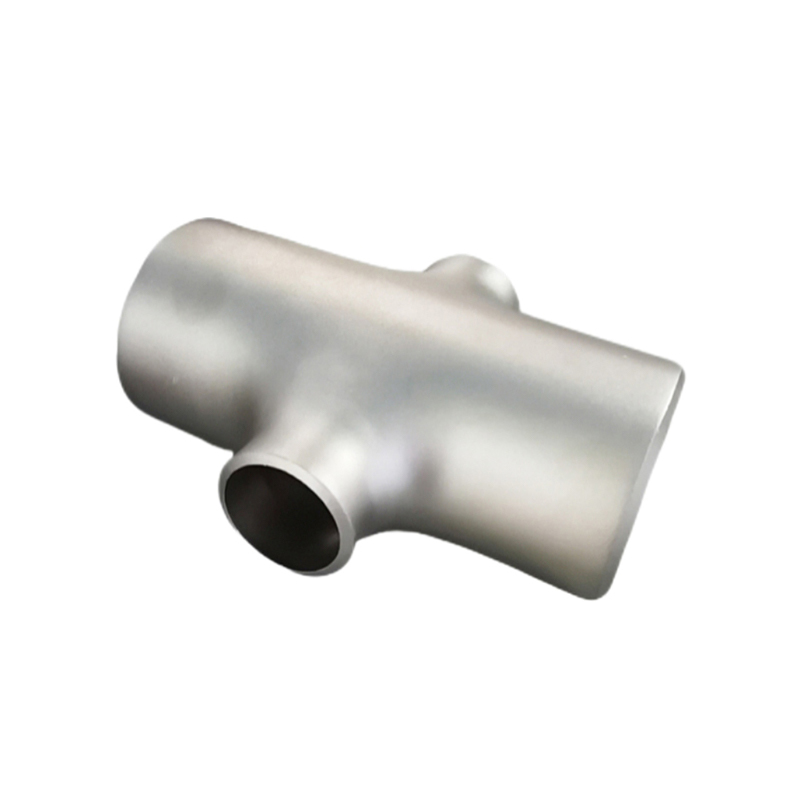

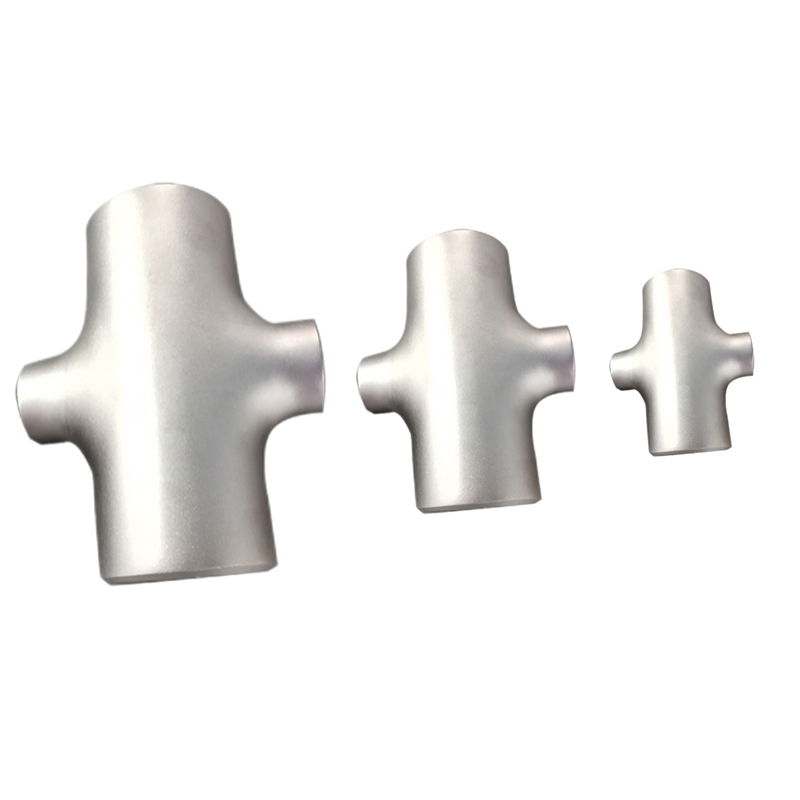

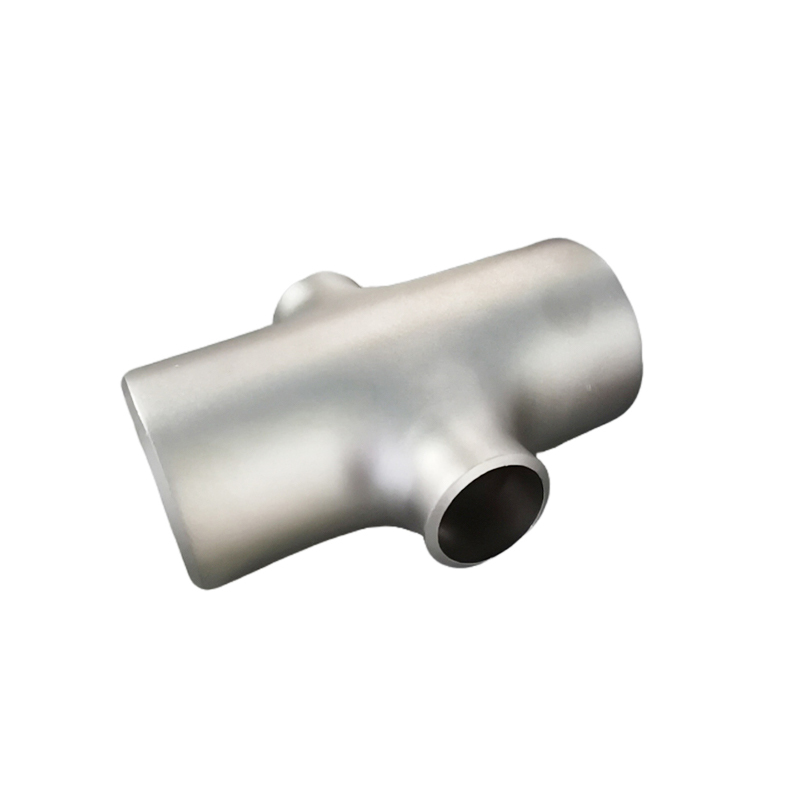

Titanium unequal cross is a pipe connection component used to connect the reducer parts of two or more pipes. It features convenient connection and simple installation, and is widely used in industrial pipeline systems.
Unequal Reducing Cross made of titanium material has the advantages of high strength, corrosion resistance and lightweight. It has excellent corrosion resistance in extreme environments such as acids, alkalis and seawater, and its service life is far longer than that of traditional materials. The high-temperature resistance property broadens the applicability to extreme working conditions, comprehensively reduces maintenance costs, and enhances system reliability.
Titanium buttweld reducing cross pipe fittings specifications cover DN15-DN1200, and also support non-standard customization accordingly to customer‘s requirements or drawings. Our titanium equal cross pipe fittings are manufactured critically to the exact standard, including ASME B16.9，GB/T27684-2011 international standards to meet different requirements from the customers worldwide.
|
Standard |
ASTM B16.9，GB/T27684-2011 |
|
Material Designation |
TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
|
Size |
DN15×15×10-DN125×125×80 |
|
OEM & ODM |
Available |
|
Surface Finish |
Shot blasting, Sand blasting |
|
Technics |
Welding, Seamless |
|
Type |
Titanium Reducing Cross |
|
Packaging |
Export Standard Wooden case, or can be customized |
|
Application |
Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for off shore oil drilling, etc |
|

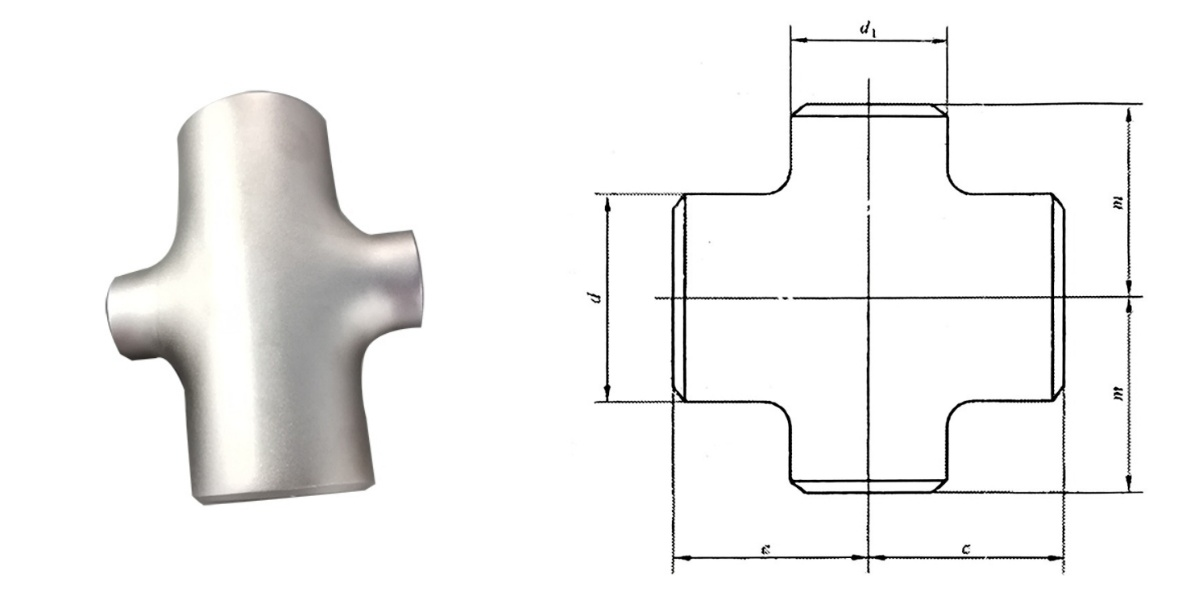

Nominal diameter |
Outside diameter at bevel d |
Center to end |
||||
|
Tube pass T |
Exit M |
Tube pass C |
Exit M |
|||
|
I series |
ⅡSeries |
I series |
ⅡSeries |
|||
|
15X15X10 |
21.3 |
18 |
17.3 |
14 |
25 |
25 |
|
15X15X8 |
21.3 |
18 |
13.7 |
10 |
25 |
25 |
|
20X20X15 |
26.7 |
25 |
21.3 |
18 |
29 |
29 |
|
20X20X10 |
26.7 |
25 |
17.3 |
14 |
29 |
29 |
|
25X25X20 |
33.4 |
32 |
26.7 |
25 |
38 |
38 |
|
25X25X15 |
33.4 |
32 |
21.3 |
18 |
38 |
38 |
|
32X32X25 |
42.2 |
38 |
33.4 |
32 |
48 |
48 |
|
32X32X20 |
42.2 |
38 |
26.7 |
25 |
48 |
48 |
|
32X32X15 |
42.2 |
38 |
21.3 |
18 |
48 |
48 |
|
40X40X32 |
48.3 |
45 |
42.2 |
38 |
57 |
57 |
|
40X40X25 |
48.3 |
45 |
33.4 |
32 |
57 |
57 |
|
40X40X20 |
48. 3 |
45 |
26.7 |
25 |
57 |
57 |
|
40X40X15 |
48.3 |
45 |
21.3 |
18 |
57 |
57 |
|
50X50X40 |
60.3 |
57 |
48.3 |
45 |
64 |
60 |
|
50X50X32 |
60. 3 |
57 |
42.2 |
38 |
64 |
57 |
|
50X50X25 |
60.3 |
57 |
33.4 |
32 |
64 |
51 |
|
50X50X20 |
60.3 |
57 |
26.7 |
25 |
64 |
44 |
|
65X65X50 |
73.0 |
76 |
60.3 |
57 |
76 |
70 |
|
65X65X40 |
73.0 |
76 |
48.3 |
45 |
76 |
67 |
|
65X65X32 |
73.0 |
76 |
42.2 |
38 |
76 |
64 |
|
65X65 X25 |
73.0 |
76 |
33.4 |
32 |
76 |
57 |
|
80X80X65 |
88.9 |
89 |
73.0 |
76 |
86 |
83 |
|
80X80X50 |
88.9 |
89 |
60.3 |
57 |
86 |
76 |
|
80X80X40 |
88.9 |
89 |
48.3 |
45 |
86 |
73 |
|
80X80X32 |
88.9 |
89 |
42.2 |
38 |
86 |
70 |
|
90X90X80 |
101.6 |
———— |
88.9 |
———— |
95 |
92 |
|
90X90X65 |
101.6 |
———— |
73.0 |
———— |
95 |
89 |
|
90X90X50 |
101.6 |
———— |
60.3 |
———— |
95 |
83 |
|
90X90X40 |
101.6 |
———— |
48.3 |
———— |
95 |
79 |
|
100X100X90 |
114.3 |
———— |
101.6 |
———— |
105 |
102 |
|
100X100X80 |
114.3 |
108 |
88.9 |
89 |
105 |
98 |
|
100X100X65 |
114.3 |
108 |
73.0 |
76 |
105 |
95 |
|
100X100X50 |
114.3 |
108 |
60.3 |
57 |
105 |
89 |
|
100X100X40 |
114.3 |
108 |
48.3 |
45 |
105 |
86 |
|
125X125X100 |
141.3 |
133 |
114.3 |
108 |
124 |
117 |
|
125X125X90 |
141.3 |
———— |
101.6 |
———— |
124 |
114 |
|
125X125X80 |
141.3 |
133 |
88.9 |
89 |
124 |
111 |
Titanium pipe fittings are tubular connecting parts mainly made of titanium and titanium alloys. Titanium metal
itself has the characteristics of low density, high specific strength, strong corrosion resistance and excellent
biocompatibility, which enables titanium pipe fittings to maintain stable performance even in extreme
environments. Titanium pipe fittings can demonstrate extraordinary reliability in fields such as the chemical industry,
Marine engineering, the petroleum industry, and the automotive industry.
