PN 6 Titanium Threaded Flange

Standard:ASME, JIS, DIN, GB, GOST
Material:TA1,TA2,GR2,GR7,GR12,GR16,N5 etc
OEM & ODM:Available
Technics: Forged
Size: DN10-DN150
  • Description

Titanium threaded flanges, also called titanium screwed flanges, include threads inside the flange bore which

connects to the external threads on a pipe without welding. Threaded pipe flanges typically have a RF and FF

sealing face. Threaded connections include NPT (National Pipe Thread) or BSPT (British Standard Pipe Taper).



Threaded titanium flanges are commonly used for pipe connection. Its main material is industrial pure titanium or

titanium alloy. The pressure rating packages include PN6,PN10,PN16,PN25,PN40. Among them, the common

specifications of PN6 range from DN10 to DN150.



Threaded Pipe titanium flange available with standard size as well as non-standard customization accordingly

to customer's requirements or drawings. Our titanium flanges are manufactured critically to the exact standard,

includin ASME,JIS,DIN,GB,GOST international standards to meet different requirements from the customers

worldwide.



Details

Standard

ASME,JIS,DIN,GB,GOST

Material Designation

TA1,TA2,TA9,TA10,GR1,GR2,GR7,GR12,GR16,N5,N6,N7 etc.

Size

DN10-DN150

OEM/ODM

Available

Pressure

PN6,PN10,PN16,PN25,PN40,

Technics

Forged

Sealing Surface

RF,FF

Type

Threaded flange

Packaging

Export standard wooden case, or can be customized

Application

Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow, food and other

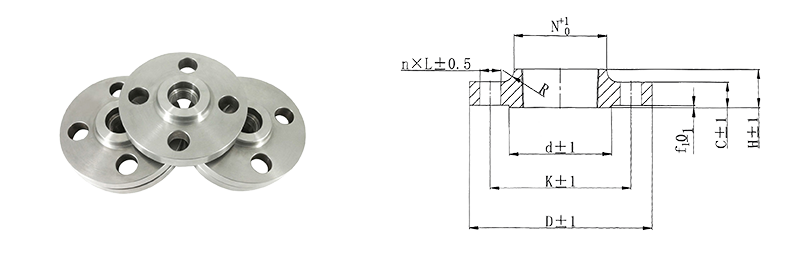

Specification

threaded flange

PN6(mm)

Diameter Nominal
DN

Outer diameter of steel pipe
A

Connection size

Flange thickness
C

Flange neck

Flange height
H

Pipe thread specification
Rc, Rp or NPT(in)

Flange outside diameter
D

Diameter of center circle of bolt hole
K

Bolt hole diameter
L

Number of bolt holes
n(PC)

bolt
Th

N

R

10

17.2

75

50

11

4

M10

12

25

4

20

3/8

15

21.3

80

55

11

4

M10

12

30

4

20

1/2

20

26.9

90

65

11

4

M10

14

40

4

24

3/4

25

33.7

100

75

11

4

M10

14

50

4

24

1

32

42.4

120

90

14

4

M12

14

60

6

26

1-1/4

40

48.3

130

100

14

4

M12

14

70

6

26

1-1/2

50

60.3

140

110

14

4

M12

14

80

6

28

2

65

76.1

160

130

14

4

M12

14

100

6

32

2-1/2

80

88.9

190

150

18

4

M16

16

110

8

34

3

100

114.3

210

170

18

4

M16

16

130

8

40

4

125

169.7

240

200

18

8

M16

18

160

8

44

5

150

168.3

265

225

18

8

M16

18

185

10

44

6



Application

Titanium flanges, with their high strength-to-weight ratio, high-temperature resistance, corrosion resistance and

excellent fatigue performance,have become core components in six high-end sectors: Aerospace,Petrochemicals,

Marine Engineering, New Energy, Electronics and Environmental Protection.

1application

Process

1法兰加工工艺图

Packaging

1packing
