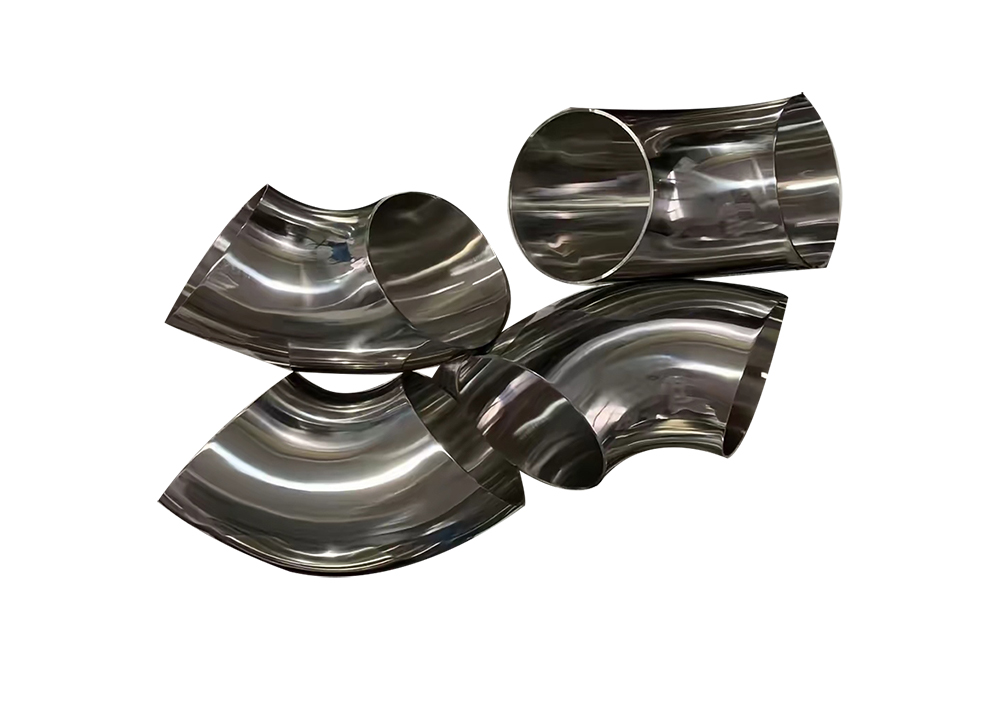

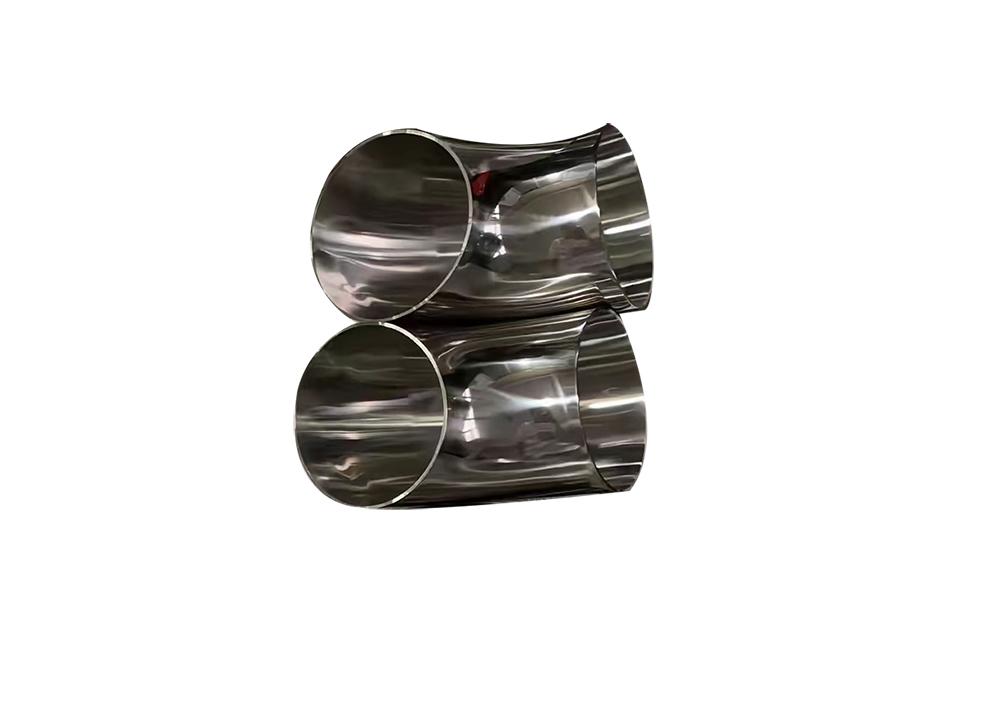

Titanium 90° sanitary elbow is a specialized pipe fitting used in pipeline systems to change the direction of fluid flow. It is widely used in industries such as dairy, food and beverage, beer, biopharmaceutical, and daily chemicals, making it suitable for demanding sanitary-sensitive industrial applications.
90° sanitary titanium elbow ensures media purity with its exceptional corrosion resistance, high-temperature tolerance, high strength, and lightweight properties. Its life span significantly exceeds that of stainless steel, making it an ideal choice for high-sanitation process connections in industries such as food and pharmaceuticals.
Titanium 90 degree sanitary elbow fittings cover specifications from DN15 to DN650 and can also be custom-manufactured according to customer requirements or drawings. Our Titanium 90° Sanitary Elbow fittings are strictly produced in compliance with international standards such as ASME B16.9 and GB/T 17684-2011 to meet the diverse needs of global customers.
|
Standard |
GB/T17684—2011，ASME B 16.9 |
|
Material |
TA1,TA2, Gr.1 BT1-00, Gr.1ELI, BT1－00CB,Gr.2 BT1－0 etc |
|
Size |
DN15-DN 650(NPS1/2-NPS 26) |
|
OEM/ODM |
Available |
|
Titanium Surface Finish |
Inner and Outer Surface Polishing |
|
Technics |
Welding |
|
Type |
Titanium 90° sanitary elbow |
|
Packaging |
Export standard wooden case, or can be customized |
|
Application |
Pharmaceutical Industry Biotechnology & Biopharm Food & Beverage Industry Cosmetics Industry Semiconductor & Electronics Industry Chemical & Speciality Chemicals Vehicle Exhaust System |

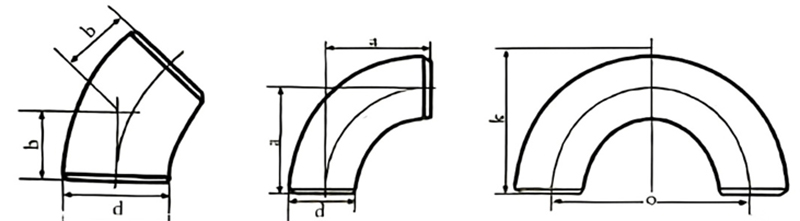

(mm)
|
Nominal size
|
|
Center to End |
Center to Center |
Back to Face |
|||||
|
90°Ebows |
45°Ebows |
180°return |
|||||||
|
A |
B |
O | K | ||||||
|
DN |
NPS |
D |
LR |
SR |
LR |
LR |
SR |
LR |
SR |
|
15 |
1/2 |
21.3 |
38 |
- |
16 |
76 |
- |
48 |
- |
|
20 |
3/4 |
26.7 |
38 |
- |
19 |
76 |
- |
51 |
- |
|
25 |
1 |
33.4 |
38 |
25 |
22 |
75 |
51 |
56 |
41 |
|
32 |
1 1/4 |
42.2 |
48 |
32 |
25 |
95 |
64 |
70 |
52 |
|
40 |
1 1/2 |
48.3 |
57 |
38 |
29 |
114 |
76 |
83 |
62 |
|
50 |
2 |
60.3 |
76 |
51 |
35 |
152 |
102 |
106 |
81 |
|
65 |
2 1/2 |
73.0 |
95 |
64 |
44 |
191 |
127 |
132 |
100 |
|
80 |
3 |
88.9 |
114 |
76 |
51 |
229 |
152 |
159 |
121 |
|
90 |
3 1/2 |
101.6 |
133 |
89 |
57 |
267 |
178 |
184 |
140 |
|
100 |
4 |
114.3 |
152 |
102 |
64 |
305 |
203 |
210 |
159 |
|
125 |
5 |
141.3 |
190 |
127 |
79 |
381 |
254 |
262 |
197 |
|
150 |
6 |
168.3 |
229 |
152 |
95 |
457 |
305 |
313 |
237 |
|
200 |
8 |
219.1 |
305 |
203 |
127 |
610 |
406 |
414 |
313 |
|
250 |
10 |
273 |
381 |
254 |
159 |
762 |
508 |
518 |
391 |
|
300 |
12 |
323.8 |
457 |
305 |
190 |
914 |
609 |
619 |
467 |
|
350 |
14 |
355.6 |
533 |
356 |
222 |
1067 |
711 |
711 |
533 |
|
400 |
16 |
406.4 |
610 |
406 |
254 |
1219 |
813 |
813 |
610 |
|
450 |
18 |
457.0 |
686 |
457 |
286 |
1372 |
914 |
914 |
686 |
|
500 |
20 |
508.0 |
762 |
508 |
318 |
1524 |
1016 |
1016 |
762 |
|
550 |
22 |
559.0 |
838 |
559 |
343 |
1676 |
1118 |
1118 |
838 |
|
600 |
24 |
610.0 |
914 |
610 |
381 |
1829 |
1219 |
1219 |
914 |
|
650 |
26 |
660.0 |
991 |
660 |
406 |
- |
1320 |
- |
- |
Titanium pipe fittings are tubular connecting parts mainly made of titanium and titanium alloys. Titanium metal
itself has the characteristics of low density, high specific strength, strong corrosion resistance and excellent
biocompatibility, which enables titanium pipe fittings to maintain stable performance even in extreme
environments. Titanium pipe fittings can demonstrate extraordinary reliability in fields such as the chemical industry,
Marine engineering, the petroleum industry, and the automotive industry.
